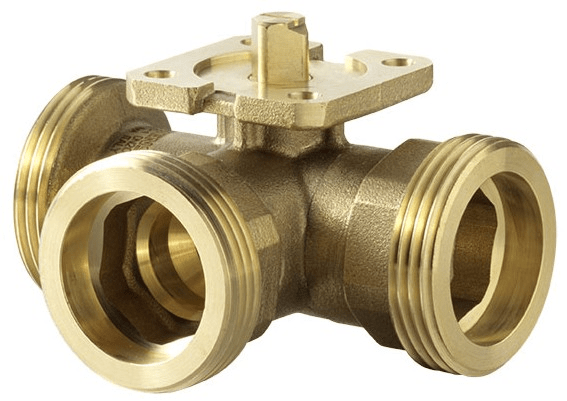

3-way changeover ball valve (T) with male thread, PN 40

BKTA

3-way changeover ball valve (T) with male thread, PN 40

How energy efficiency is improved

Efficiency means precise changeover with minimum leakage


Vlastnosti

  • 3-way changeover ball valve with T-bore for use in closed circuits in heating, ventilation and air conditioning systems

  • For changing over volume flows in combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S)

  • Fast changeover in six seconds with the AKM115SF152 valve actuator

  • Low torque due to collar mounted on O-ring

  • Spindle with friction ring and double O-ring seal

  • Ball valve with male thread as per ISO 228-1 (G x” B)

  • Body made of dezincification-resistant cast brass

  • Ball made of dezincification-resistant brass, chrome-plated and polished surface

  • Strainer and screw fitting available as accessories

  • Water quality as per VDI 2035
