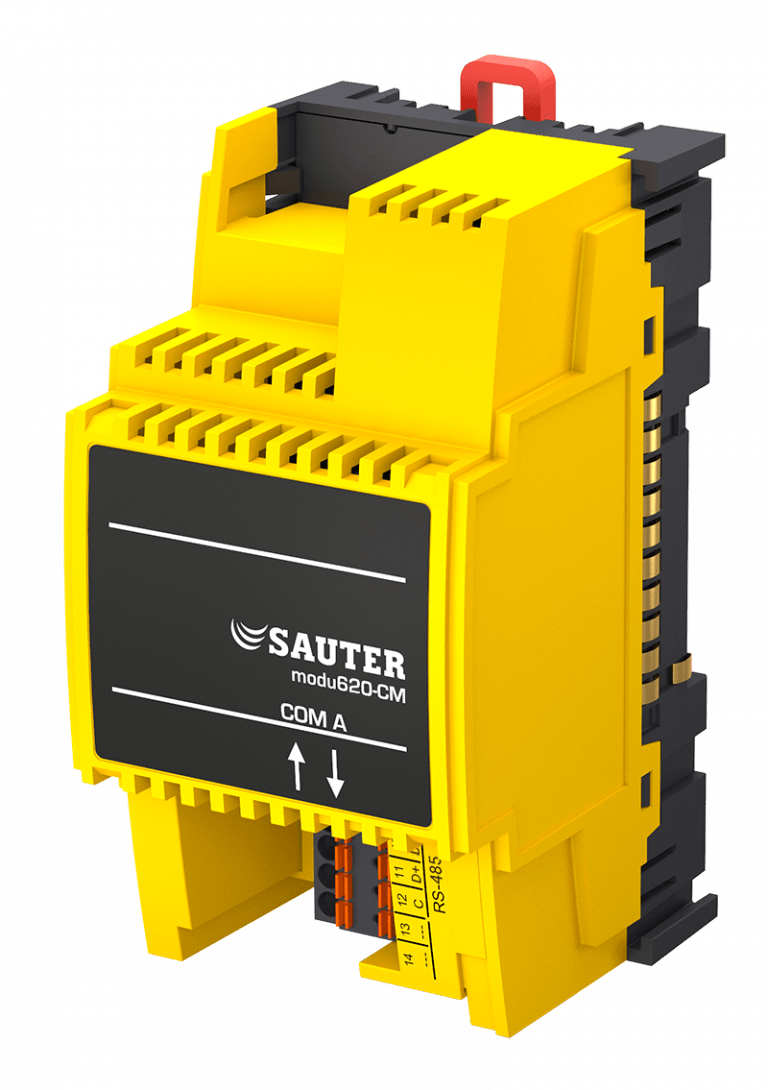

Modbus/RTU (RS-485) communication module, modu620-CM
EY6CM20
Vlastnosti
-
Part of the SAUTER modulo 6 system family
-
Plug-in element for extending the modu680-AS and modu660-AS automation stations or modu612-LC link coupler
-
Up to five COM modules per automation station
-
Connection to non-SAUTER systems (PLC, chillers, meters etc.)
-
RS-485, half duplex, electrically isolated interface for Modbus/RTU, Modbus/ASCII
-
Electrical isolation
-
Configurable RS-485 network resistors (software)
-
Baud rate 600…115 200 bit/s
-
Modbus master with up to four Modbus communication profiles
-
Integrated tunnelling function for commissioning and monitoring with serial Modbus master tools
