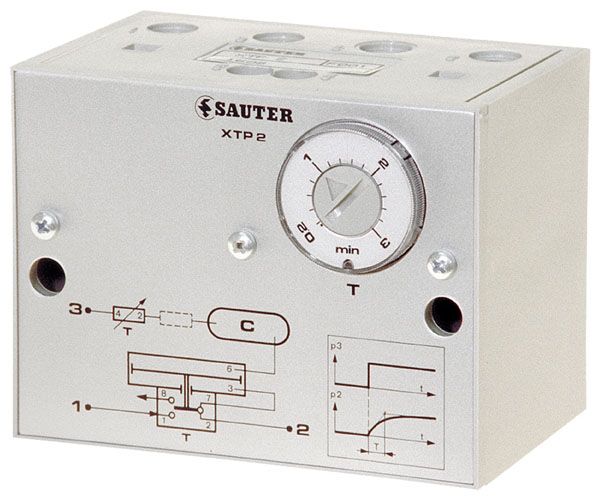

Time-lag relay
XTP 2
Areas of application
Adjustable attenuation of pneumatic signals, e.g. for switched (immediate) control pressures.
Properties
Technical description
Adjustable attenuation of pneumatic signals, e.g. for switched (immediate) control pressures.
Properties
- Front panel with printed circuit diagram for easier commissioning
- Plastic housing suitable for wall or top-hat rail mounting (rail EN 60715)
- Compressed-air connections with Rp 1/8" female thread
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Adjustable time constant between 0.2 and 3 min.
²
