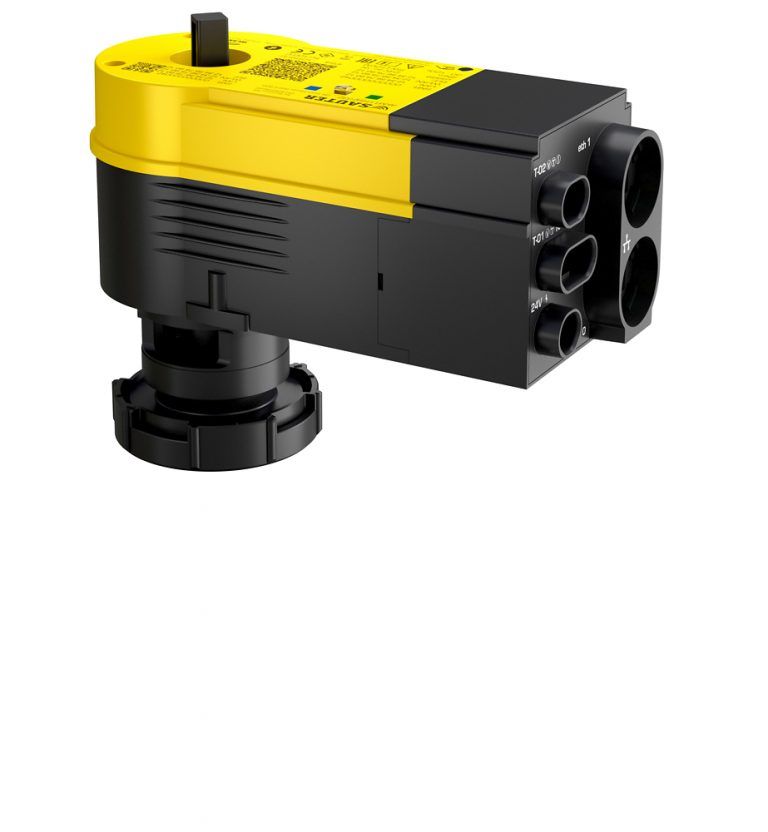

Smart Actuator for ball valve, BACnet/IP

Smart Actuator as an intelligent IoT solution for autonomous control of heating and air-conditioning applications in smart buildings

Ready-made HVAC standard applications from SAUTER from the App Store allow efficient installation and commissioning of small systems

Applications are selected from the library via mobile app and installed on the Smart Actuator

Ethernet switch, Wi-Fi interface and Bluetooth LE for flexible device communication and system integration

BACnet/IP communication (EN ISO 16484‑5) via Ethernet or Wi-Fi interface

Convenient commissioning, parameterisation and remote access to the system via a mobile app or with the SAUTER CASE engineering software

As an IoT device, the cloud connection for remote access takes place via MQTT using TLS encryption

Enables creation of Smart Actuator networks with distributed intelligence

Optionally, the Smart Actuator can be used flexibly in BA networks due to free programmability via CASE Suite

Real-time clock for calendar functions and time programmes

Two universal I/Os for connecting external sensors and actuators

Direct connection of up to two room operating units

Flexibly expandable with up to four I/O modules for comprehensive control tasks

Pre-assembled cables with mechanically and colour-coded connectors allow fast, error-free wiring for Smart Actuator and SAIO 100 I/O modules

Fitting without tools using a bayonet ring made of glass-fibre reinforced plastic

BLDC motor technology enables extensive diagnostic functions

Intelligent angle of rotation adaptation and detection including feedback signal

Electronic, torque-dependent cut-off

Disengageable gear unit for manual adjustment and local priority operation

For operating the 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI and BKTA, as well as 6-way ball valve B2KL
