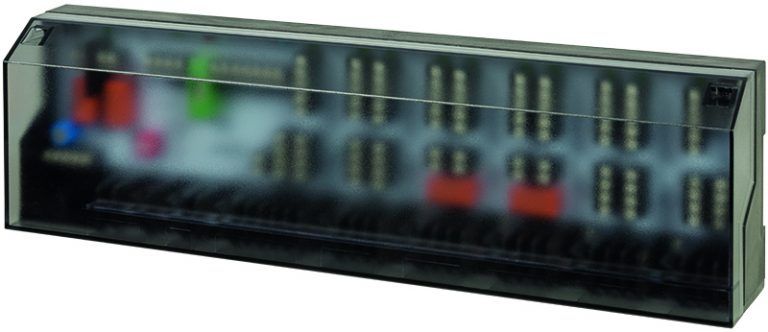

Electric distributor for control signals
FXV 3***
How energy efficiency is improved
Distributor for intelligent, energy-efficient control
Areas of use
Distribution of the power supply, the positioning signals and a shared time programme for room devices (analogue or with display) and thermal actuators.
Vlastnosti
-
For easy wiring of up to 6 or 10 zones in a panel heating system
-
For transferring switching signals from the unitary controllers for heating or heating/cooling
-
Individual forwarding of time commands or night set-back to the appropriate actuators; max. two time channels
-
With pump and boiler control
-
Pump logic with adjustable follow-on time for actuating the circulation pump
-
Integrated valve protection function
-
Input for temperature limiter or dew point monitor
-
LED status indicator
-
Pump control direction switching for NC/NO actuators
-
For connecting up to 18 actuators
-
Cable guidance, standard-compliant cord grip and screwless terminal connections
-
Easy, intuitive wiring and installation
Údajové listy
Pokyny pre montáž
FXV 3***: Electric distributor for heating
pdf : 2 MB
pdf
FXV 3...
pdf : 3 MB
pdf
